Ford Super Duty (11-16), Fog Pocket Kit SAE Baja Designs

Baja Designs fog pocket kit for the Ford F-250/350 Super Duty ('11-16 ) is the perfect road-legal auxiliary fog light on the market today and allows enthusiasts to retain the factory fit and finish of their vehicles. This plug-n-play kit uses our next generation Squadron SAE lights, mounting brackets and wiring harness that allows for use of the factory switch.

Keeping you safe on the road or trails, the Squadron SAE is engineered with all-new aspheric projector optics and advanced LED technology providing a performance increase in luminous flux of 56 Percent over our previous generation SAE model and illuminates Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.

Designed to meet the current SAE J583 fog lamp requirements, the Squadron SAE is fully compliant with on-road regulations, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection.

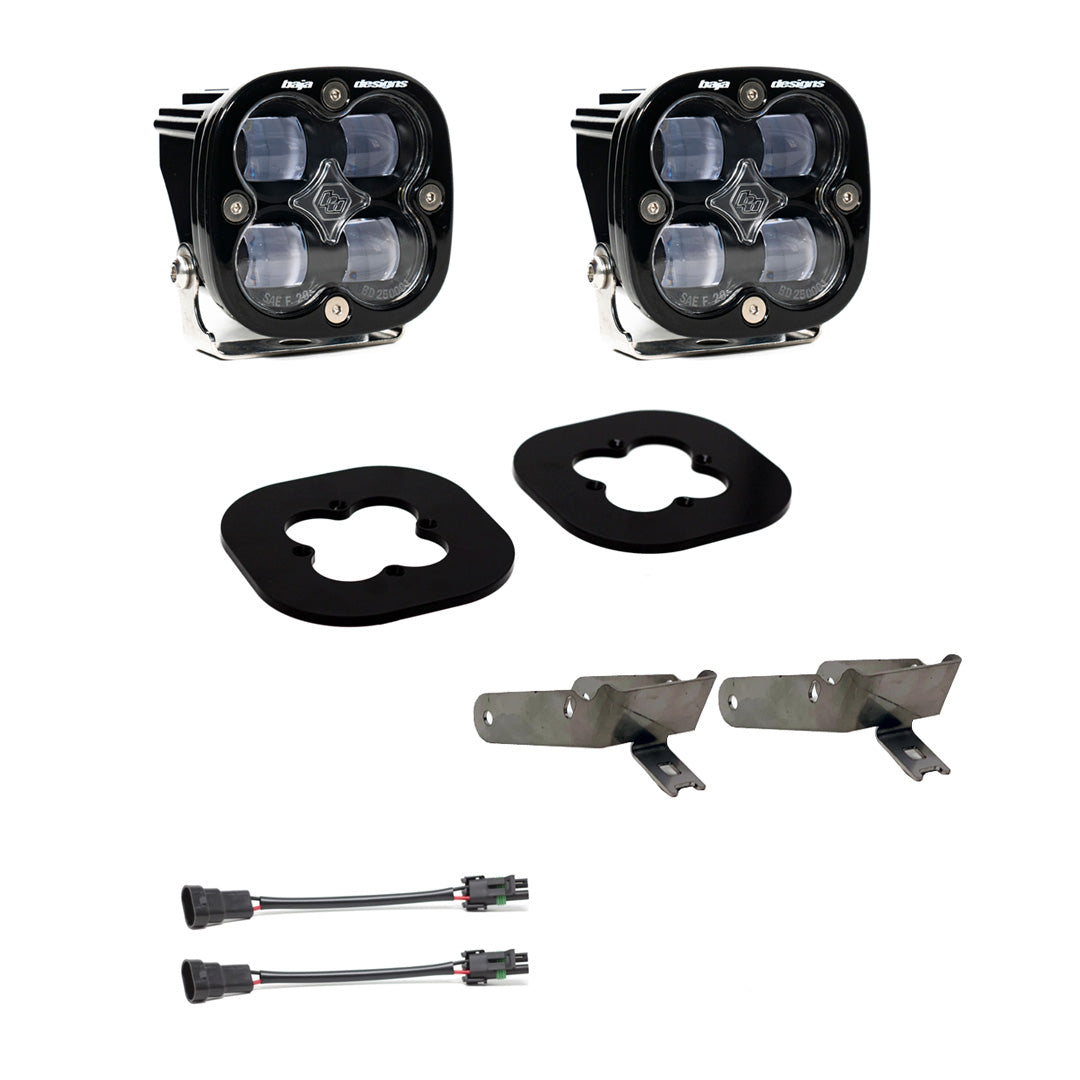

Includes:

• x2 Ford Super Duty (11-16) Fog Pocket Brackets
• x2 Wiring Adapters
• x2 Squadron SAE Clear with Vehicle Specific Bezels

Baja Designs Features:

• Satisfaction Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService- Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

• Compliance Standard: SAE Standard J583
• Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
• Weight: 12 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
