Ram 1500 TRX 21-On XL Sport A-Pillar Kit Baja Designs

Baja Designs Ram, TRX A-Pillar Kits is your ticket to prolonging the day! These kits give you the option to run our XL80, XL Pro and XL Sport LED lights. Installation for these kits are simple, and the design is robust to ensure there are no vibrations, even when you're running down wash-boarded roads.

If you're looking to spice up your truck and get more out of the day this kit is for you.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications(per light):

• Lumens: 3,150 Utilizing 4 LEDs
• Wattage/Amps: 26W / 2A
• Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Application:

2021 Dodge Ram, TRX

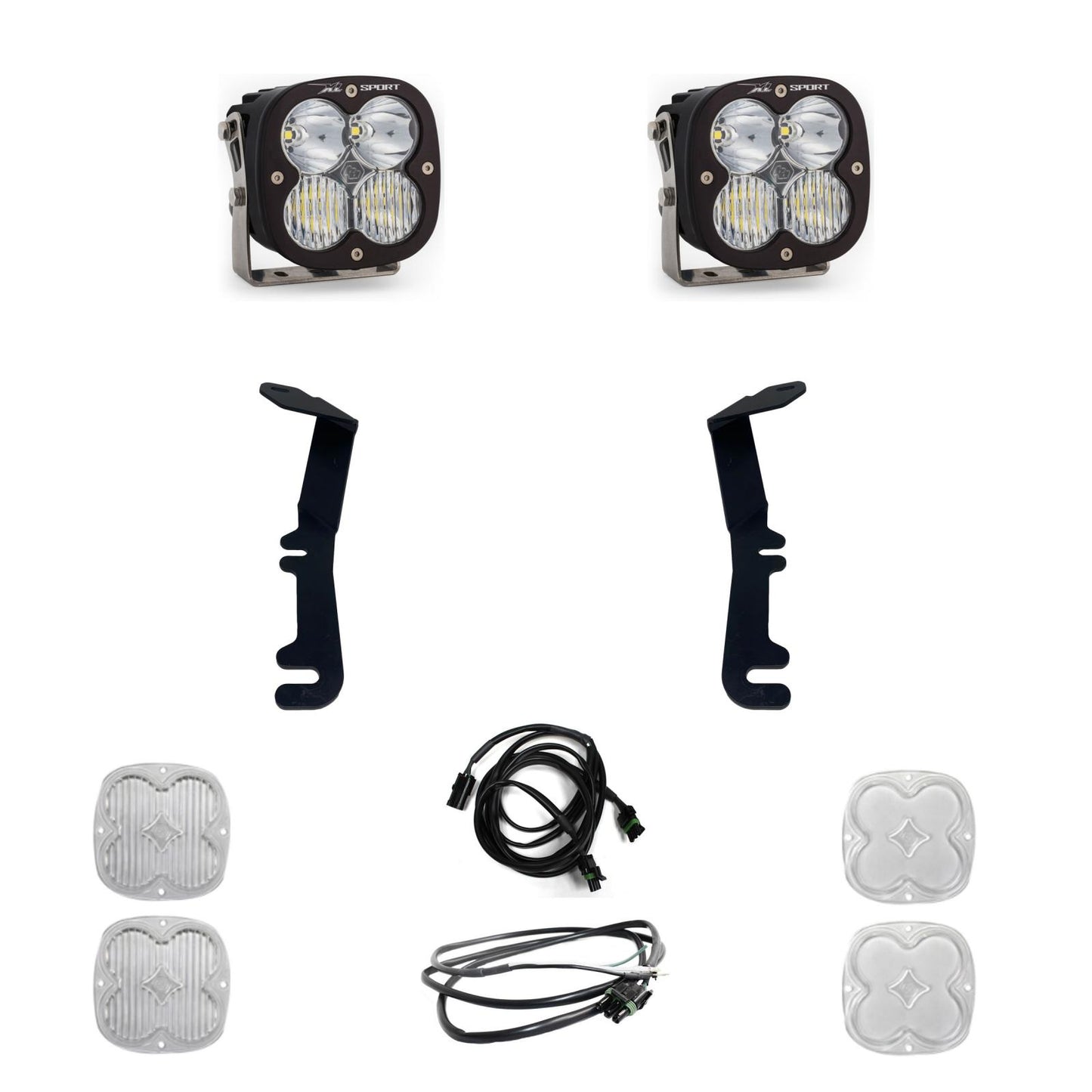

Included:

• x2 Sports in Driving Combo
• x2 A-Pillar Brackets
• x1 Trigger Switch Harness Lead
• x2 Spot Lenses
• x2 Wide Cornering Lenses
• All necessary hardware

Patterns:

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (8 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
